Mantic ER2 Street Clutch Kit LS2 LS3 2005-2013 C6 Corvette, Camaro SS,

Mantic Street with ER² is a clutch kit specifically designed for the performance LS2 and LS3 GM market. It features the patented groove design, ER2, which is CNC machined on the friction face of the pressure plate. Capable of transmitting greater than 60% more torque than a standard clutch kit, Mantic Street with ER2 is suitable for high performance vehicles. Best for daily driver street use and occasional track use.

ER2 Features

• Performance single disc clutch & flywheel combo
• Capacity: 525 TQ at the Wheels, 607 TQ at the Crank
• Unique ER2 groove pattern on the friction face of the clutch pressure plate
• Increase the Mean Effective Radius of the pressure plate
• Assist in heat removal for more repetitive abuse
• Increase in torque capacity
• Dual friction organic/cerametallic disc
• ER2 is the best replacement for a stock clutch
• Mantic ER2 clutch assembly kit includes a lightened steel flywheel, flywheel mounting bolts, pressure plate, sprung dual friction disc, throw-out bearing and alignment tool

Applications:
2010 - 2013 Chevrolet Camaro SS LS3 6.2
2010 - 2013 Chevrolet Corvette C6 Grand Sport LS3 6.2
2008 - 2013 Chevrolet Corvette C6 LS3 6.2
2008 - 2009 Pontiac G8 Sedan L76 6.0, LS3 6.2
2006 - 2013 Chevrolet Corvette C6 Z06 LS7 7.0
2005 - 2007 Chevrolet Corvette C6 LS2 6.0

Mantic Part Number: MS1002

Options
MS1002 - Steel Flywheel, Ceremetallic / Organic Material
MS1002-CC- Steel Flywheel, Ceremetallic / Ceremetallic Material
MS1002-AL - Aluminum Flywheel, Ceremetallic / Organic Material
MS1002-ALCC - Aluminum Flywheel, Ceremetallic / Ceremetallic Material

Capacity
Organic / Ceremetallic : 585 TQ at Crank, 500 TQ at Wheels
Ceremetallic/ Ceremetallic : 700 TQ at Crank, 600 TQ at Wheels

Complete Kit Includes

• ER2 Grooved Pressure Plate
• Organic / Ceremetallic Disc

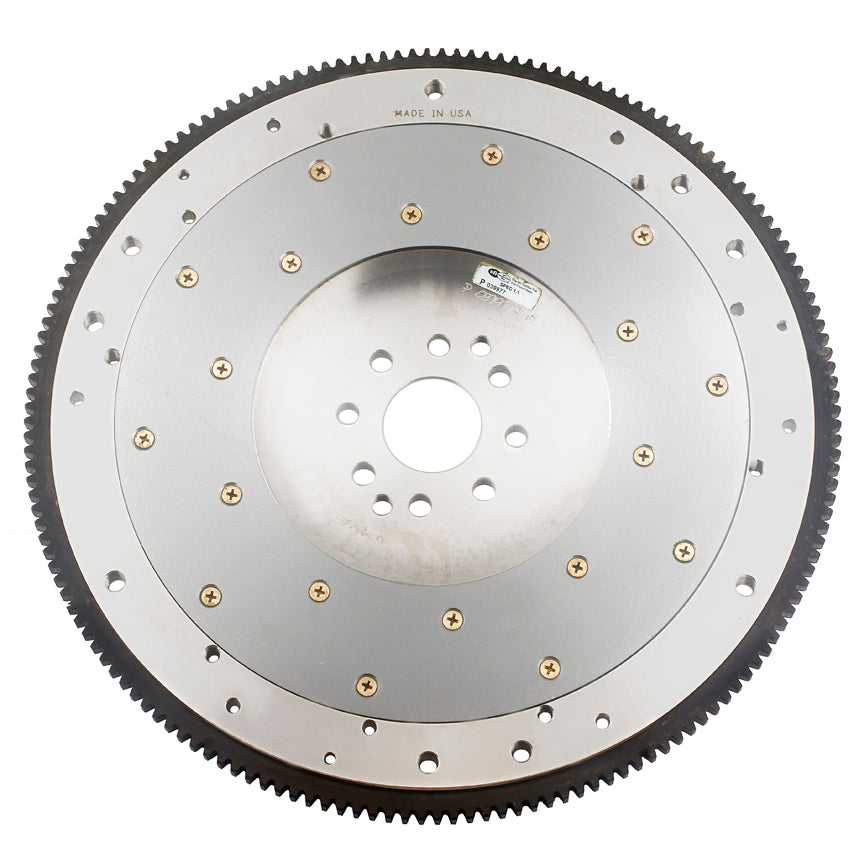

• Steel or Aluminum Flywheel
• Adapter Bearing
• Bolts - Flywheel and Pressure Plate

Mantic ER2 Advantage

This overall torque capacity increase has been achieved by higher clamp loads, increased Mean Effective Radius of the friction area, better cooling of the pressure plate and higher coefficient of friction materials on the clutch disc. These design innovations directly equate to higher torque capacity.

The clutch disc features an organic facing ring in contact with the pressure plate and a segmented ceremetallic facing on the flywheel side. The cover assemble also features a decorative and corrosion resistant blue finish.
