T56 Swap 2011-2017 Mustang GT Twin Disc Clutch Kit Ceremetallic M921236-26

Twin Disc Clutch T56 Magnum Swap 2011-2017 Mustang GT - Ceremetallic

Regular price $2,200.00 Sale

This is the perfect twin disc clutch kit for the Ford MT-82 to T56 upgrade in the 2011-2017 Mustang GT or the popular 5.0L Coyote swap using a Tremec T56 or Magnum transmission. The stock MT-82 transmission uses a 23 spline input shaft, while the T-56 uses a 26 spline shaft. This higher spline count increases the strength of the input shaft by giving the clutch and pilot bearing greater surface area to connect to the transmission. Perfect clutch for any supercharger, turbo, nitrous our N/A builds that see both street and strip duty. BEST SELLER!

Features

  • SFI Approved 1.1
  • All Billet Construction - No Flex at High RPM
  • Light Pedal Feel, High Torque Capacity
  • All in One Complete Kit
  • Lightened Flywheel
  • Completely Rebuildable
  • 1010 ft-lbs of Torque Capacity at the Crank
  • 820-850 ft-lbs Torque Capacity at the Wheels
  • Approximately 12-15% Increase Over the OE clutch Pedal Feel

NOTE: Capacity will vary with use and type of power adder being utilized ( NA vs Supercharger vs Nitrous vs Turbo ).

Application
Ford 2011-2017 Mustang GT
MT-82 upgrade to T56 Transmission
Coyote 5.0L Engine Swap
Tremec T56 Magnum or Magnum XL (26 Spline)
Ben Calimer 26 Spline MT82 Conversion

Mantic Part Number: M921236-26

The Mantic 9000 series features a Sprung Center with cushioned discs, using our premium Ceremetallic Friction material. This equates to more torque capacity and heat resistance while retaining excellent drivability. The Mantic 9000 series clutches are twin disc, 9” (225mm) diameter which greatly reduces the MOI. This allows more power to be put to the ground as well as quicker more precise shifts when compared to the heavier OE flywheels.

Complete Kit Includes

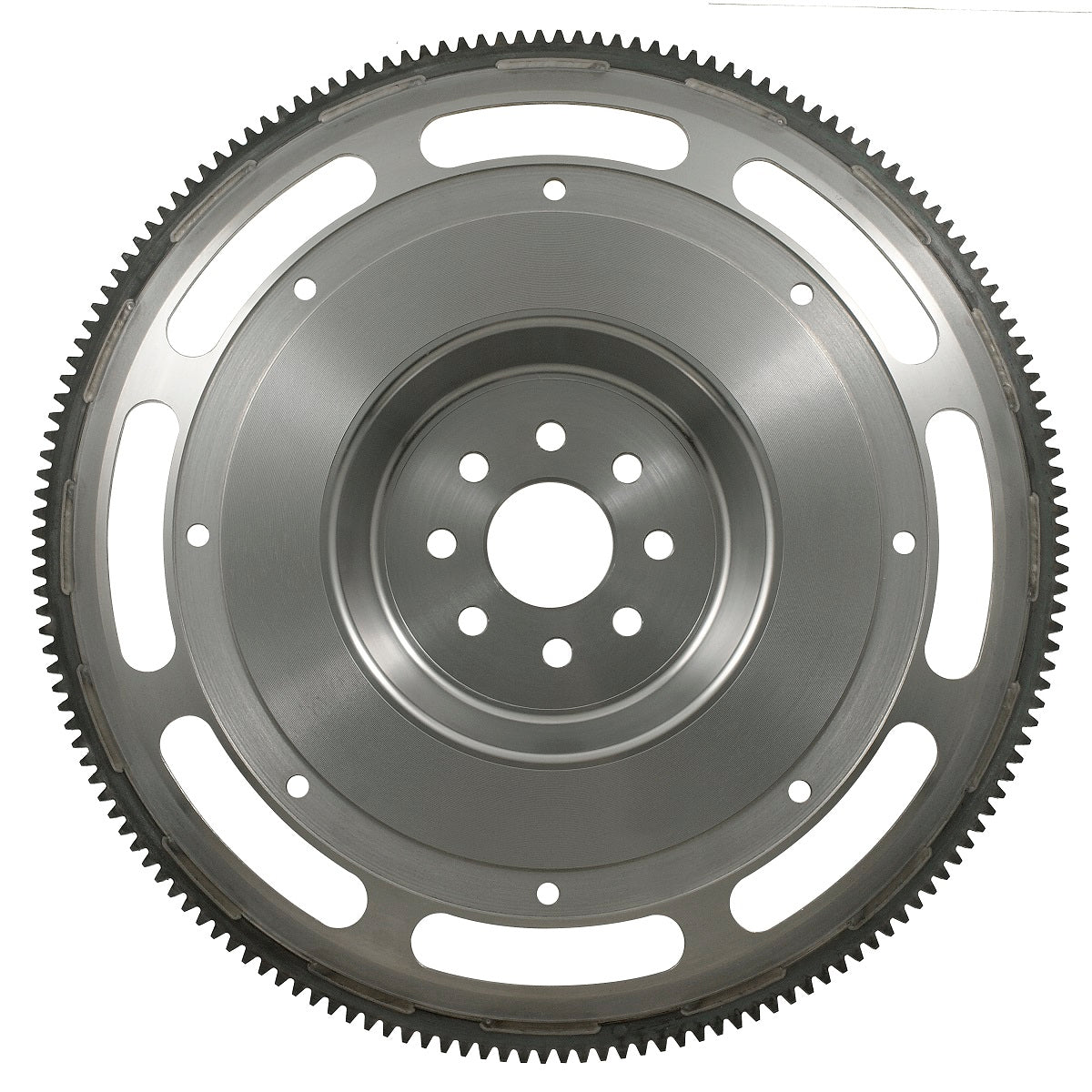

  • Lightened Steel Flywheel ( 14 lbs )

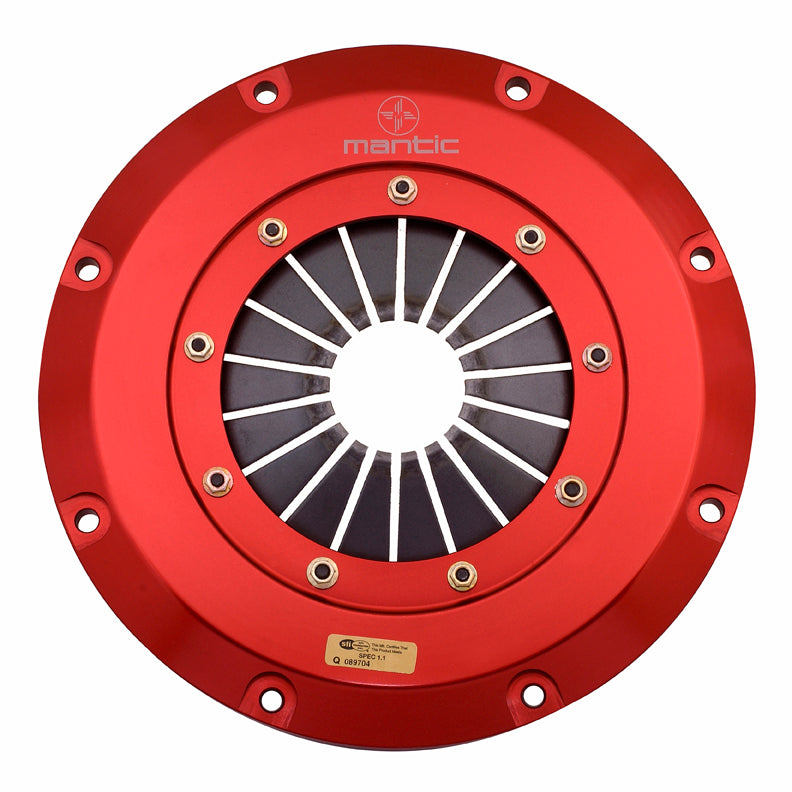

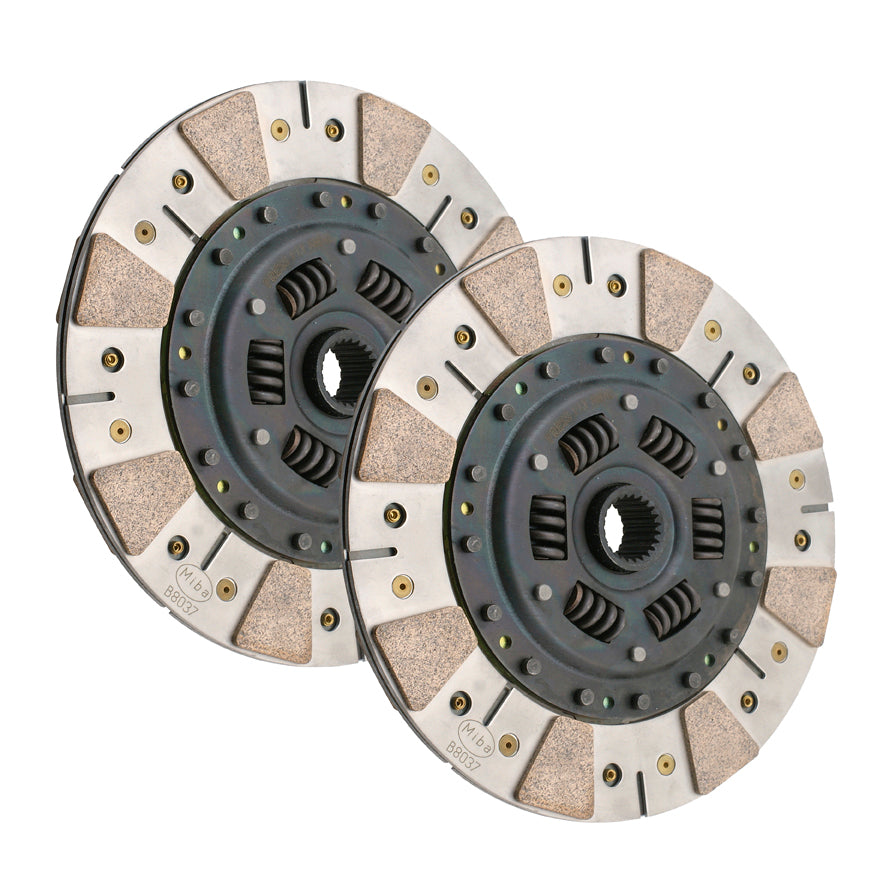

  • Twin Disc Clutch - Ceremetallic Material

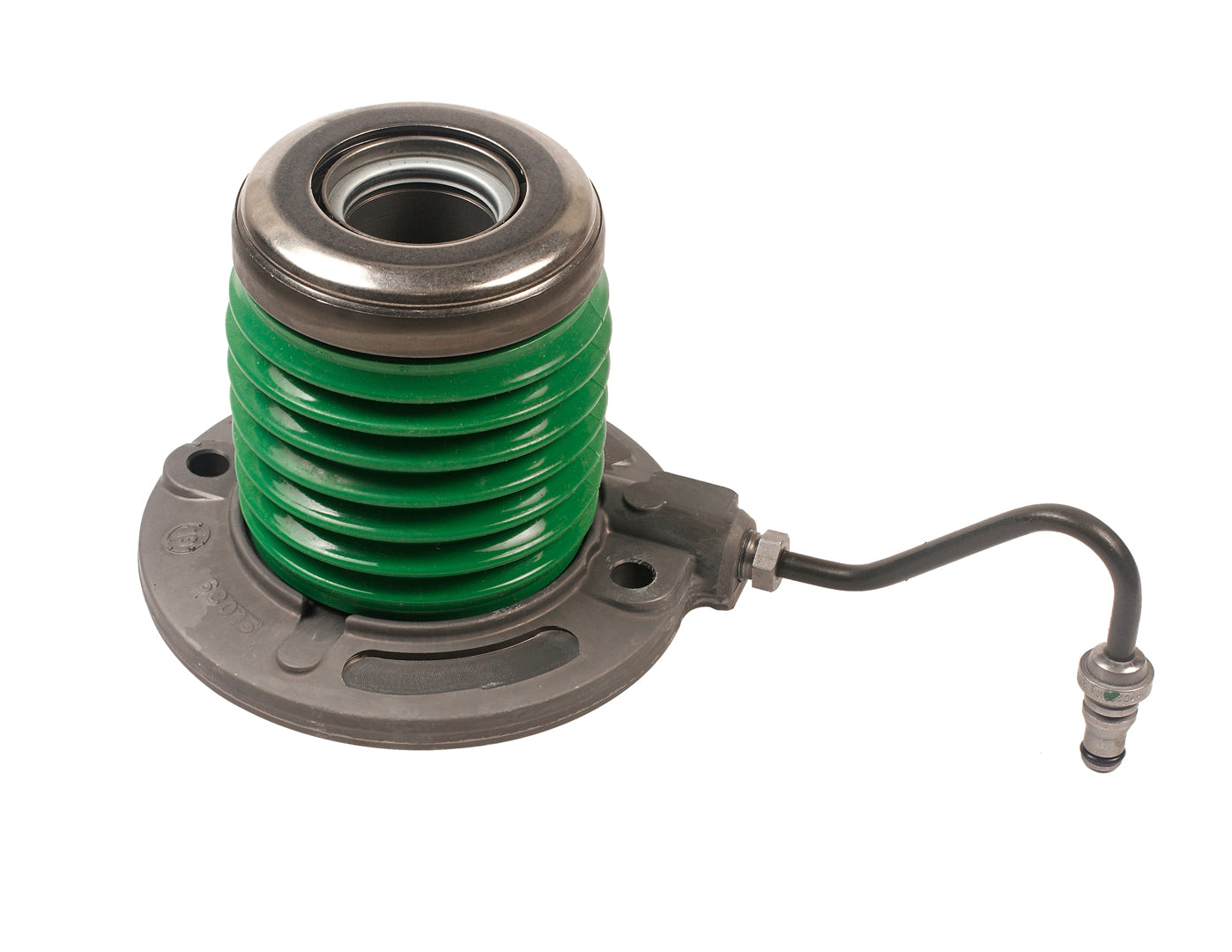

  • New OE Hydraulic Release Bearing
  • New Flywheel Bolts

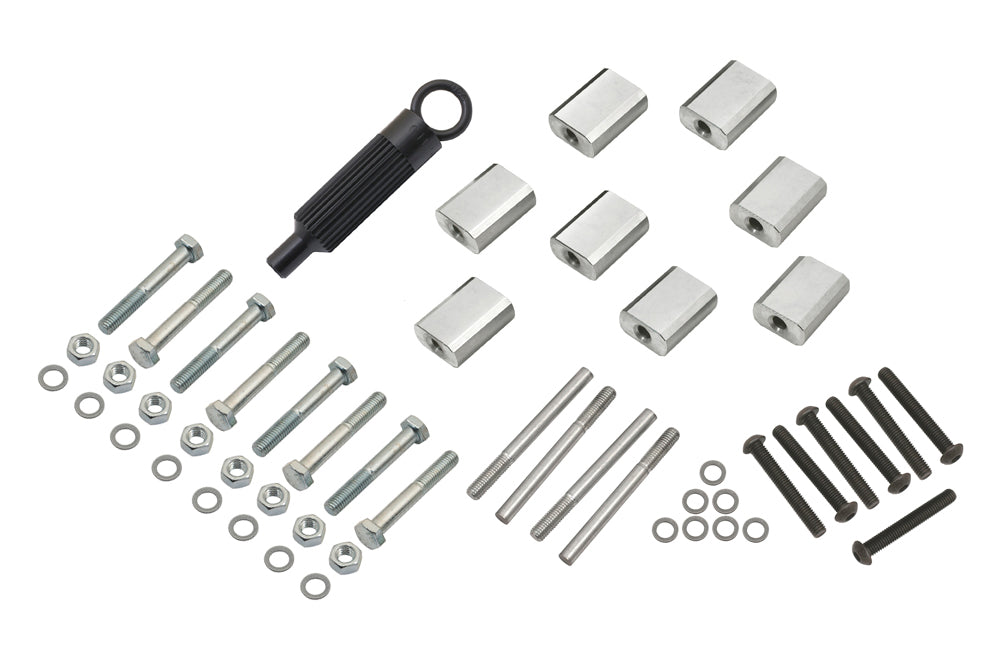

  • All Necessary Hardware

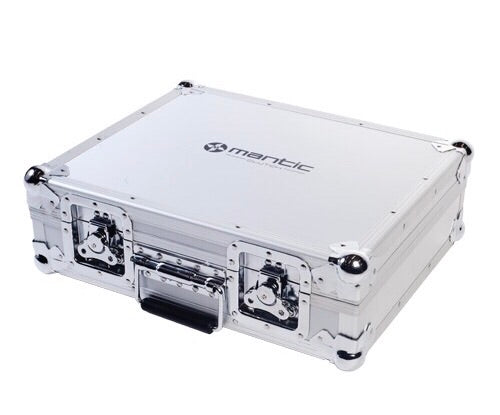

  • Aluminum Carrying Case

The clutch is modular in construction for ease of service and is completely rebuildable. The cover and components are machined from billet stock adding strength and durability. See our Rebuild Info
